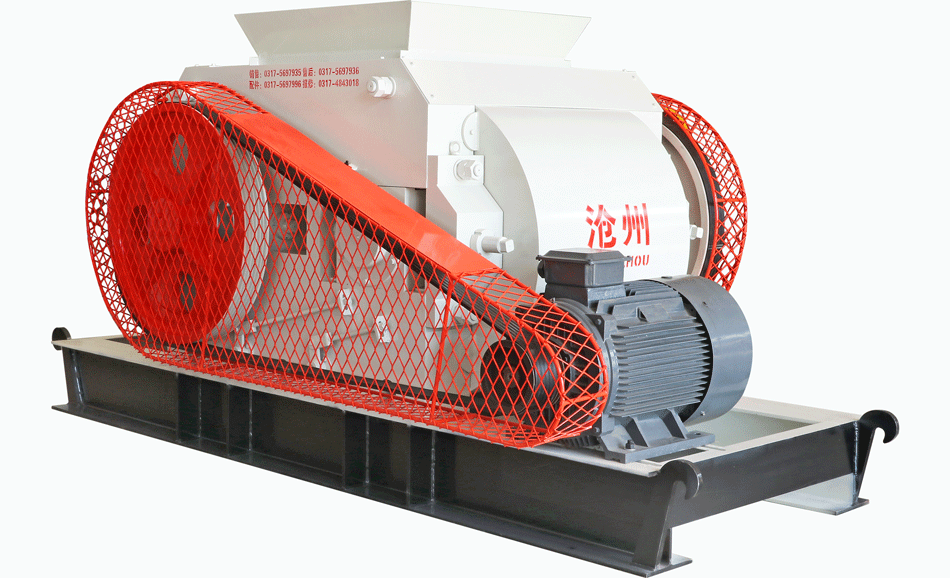

Fine-Crushing Roller
Home > Fine-Crushing Roller
Product features:Roll type fine crusher is used to make the raw material in the brick production line, such as shale, coal gangue particles and stone slurry) refine a kind of equipment, its raw material can be broken into 2 mm below the particles, achieve the function of the raw material refining.
Product introduction
Product features:
Roll type fine crusher is used to make the raw material in the brick production line, such as shale, coal gangue particles and stone slurry) refine a kind of equipment, its raw material can be broken into 2 mm below the particles, achieve the function of the raw material refining.
Second, the technical parameters:
| Date | Units of meas | GS100×80 | GS100×70 | GS120×100 | GS140×120 |
| Production capacity | m3/h | 70-120 | 60-100 | 100-150 | 110-180 |
| Roller specification | mm | Φ1000×800 | Φ1000×700 | Φ1200×1000 | Φ1400×1200 |
| Roller gap | mm | ≤3 | ≤3 | ≤3 | ≤3 |
Feeding moisture content | % | 10~18 | 10~18 | 10~18 | 10~18 |
| Feeding size | mm | ≤50 | ≤50 | ≤50 | ≤50 |
| Power | kw | 55+37 | 55+37 | 75+75 | 110+90 |
| Overall dimension | mm | 3800×1900×2000 | 3800×1700×2000 | 4600×2000×2100 | 6530×2670×2500 |
