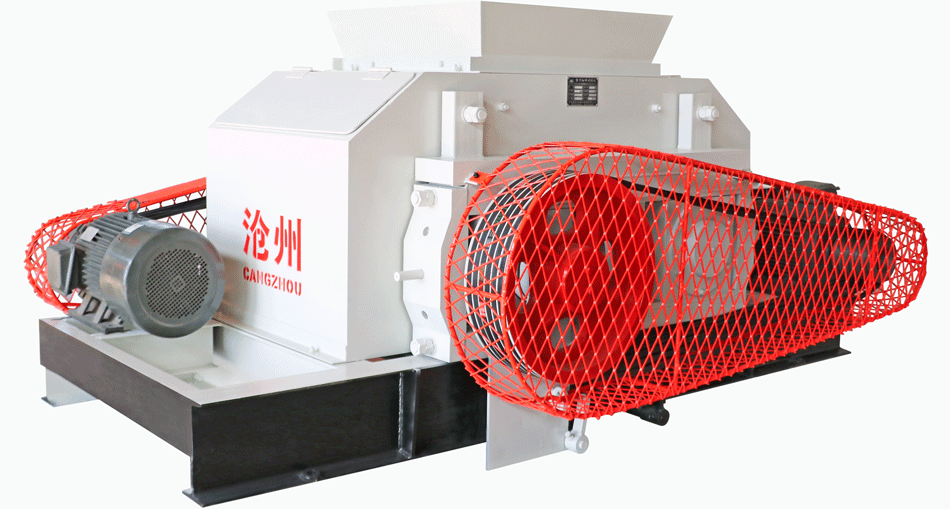

Fine-Crushing Roller
Home > Fine-Crushing Roller
Product features:This machine is used to finely ground raw material, have the function of fully refined materials, finely into particle size 2 mm or less, fine crusher ends with regulatory pressure security, to protect the roll ring and equipment. Is the ideal finely equipment brick enterprises.Seco
Product introduction
Product features:
This machine is used to finely ground raw material, have the function of fully refined materials, finely into particle size 2 mm or less, fine crusher ends with regulatory pressure security, to protect the roll ring and equipment. Is the ideal finely equipment brick enterprises.
Second, the technical parameters:
| Date | Units of meas | GS80×80 | GS80×60 | GS70×50 |
| Production capacity | m3/h | 50-80 | 40-70 | 30-50 |
| Roller specification | mm | Φ800×800 | Φ800×600 | Φ700×500 |
| Roller gap | mm | ≤3 | ≤3 | ≤3 |
| Feeding moisture content | ％ | 10-18 | 10-18 | 10-18 |
| Feeding size | mm | ≤50 | ≤50 | ≤50 |
| Power | kw | 30+30 | 22+22 | 15+15 |
| Overall dimension | mm | 3400×1600×1400 | 3100×1600×1400 | 2800×1300×1250 |
